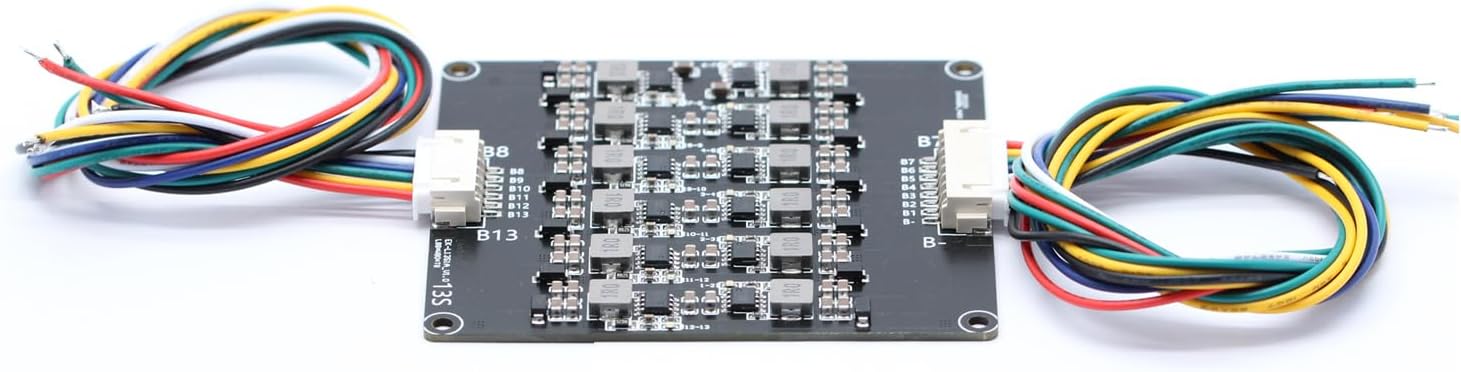

16S 48V 60V 1.2A Li-ion Lipo Lifepo4 LFP Battery Active Equalizer BMS Balancer Inductive Balance Lithium Battery Energy Transfer Board (16S)
Product details
| Management number | 224774088 | Release Date | 2026/05/09 | List Price | US$8.40 | Model Number | 224774088 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Note: This PCB is only suitable for 16S battery-packs. The indicator light will flash and report an error if this PCB is used in other battery packs. Before connecting the equalization board, be sure to check whether each battery is wired correctly(Measure whether the voltage of each battery string is correct), and do a good job of insulation. otherwise it will short-circuit and burn the board. Not recommended to use poor quality battery pack to test.
- Tips: The equalization board is not a BMS protection board, it is an auxiliary to the protection board, so no matter how bad the battery you use to test, it can be used, But it has no overvoltage/overdischarge protection function. Overvoltage/overdischarge is the function of the BMS protection board. If voltage protection is required, it is best to use it in parallel with the BMS protection board.
- Applicable battery type: NCM(Li-ion)/LFP, NOT support LTO; Single voltage working range: 3.0V-4.2V; Suggested battery capacity: below 30AH, If more than 30AH, pls search Capacitor Faster Whole Group Balancer " B096NLHXPF " to purchase.PCB size about: 4.13x3.66x0.31inch; Indicator light: LED on, balance in progress; LED off, balance ends; LED flashing: battery drop string indicator/circuit failure.
- Balance method: Detect that the voltage difference between adjacent batteries is greater than 0.1V to trigger the start of equalization, and the adjacent battery voltage difference is less than 0.03V to stop working. (Tips: The inductance equalization board needs to be charged/discharged many times before the voltage equalization can achieve a better effect.)
- Voltage balance accuracy: 30mV (typical value) between adjacent voltages; Balance current: 0.1V< adjacent voltage difference <0.2V, balanced current 0.5A-0.7A; Adjacent voltage difference >0.2V, balanced current 1.0A (max 1.2A); Under-voltage protection dormant voltage: The adjacent voltage difference is less than 0.03V and enters dormant state, Sleep current 10uA.
| UPC | 048518727453 |
|---|---|
| ASIN | B09C3J5TN3 |
| Brand | QINIZX |
| Color | Black |
| Unit Count | 1.0 Count |
| Item Weight | 0.09 Kilograms |
| Manufacturer | QINIZX-JW |
| Model Number | InduBalce-16S |
| BuiltIn Media | PCB + Cable |
| Input Voltage | 48 Volts |
| Current Rating | 1 Amps |
| Output Voltage | 4.2 Volts (DC) |
| Mfr Part Number | InduBalce-16S |
| Number of Ports | 16 |
| Specification Met | energy |
| Warranty Description | Manufacturer warranty for 90 days from date of purchase. |
| Item Dimensions D x W x H | 4.13"D x 3.66"W x 0.31"H |
| Connector Type Used on Cable | Custom terminal wire connector |
