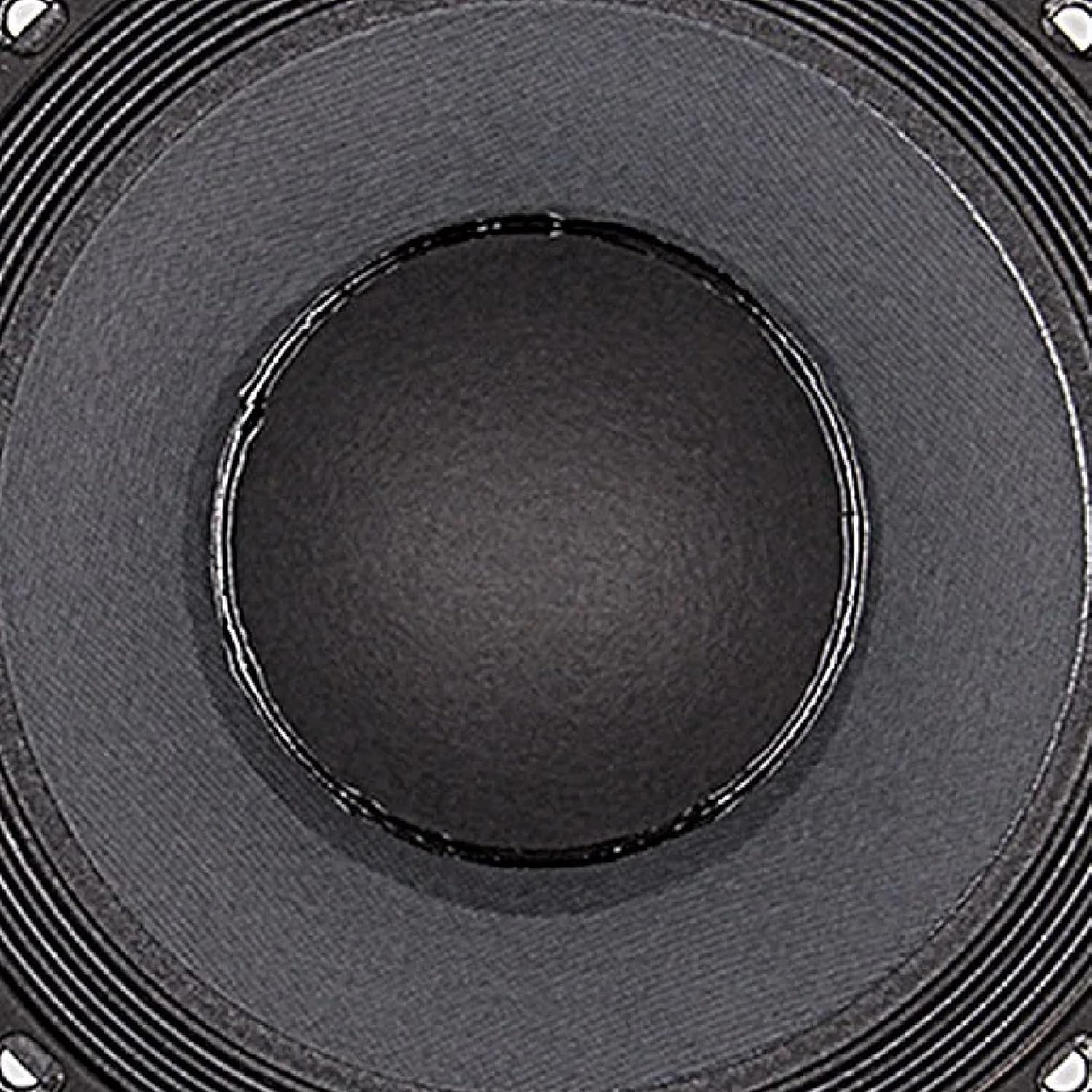

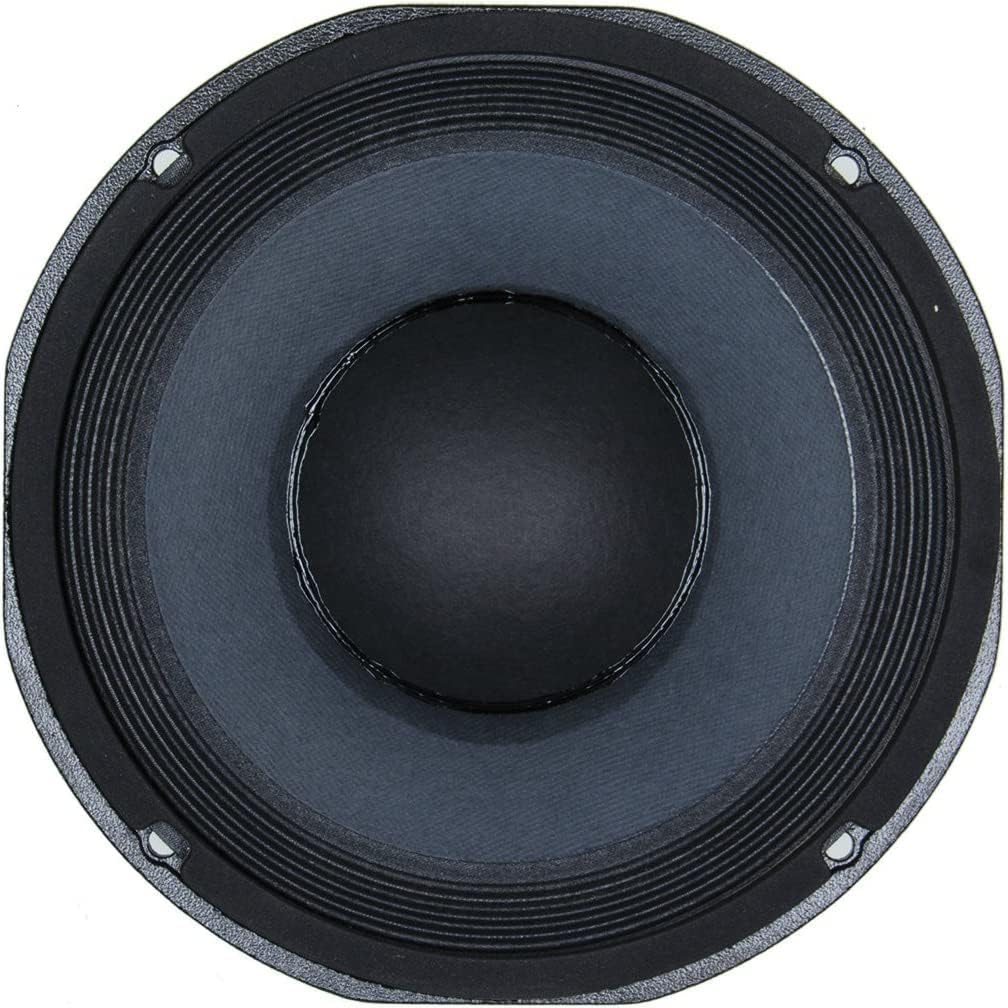

Eminence Legend CA10-8 10" Bass Guitar Speaker, 200 Watts at 8 Ohms, Black
Product details
| Management number | 226672424 | Release Date | 2026/05/09 | List Price | US$54.00 | Model Number | 226672424 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Made famous as an OEM model in many popular bass guitar cabinet brands, this highly sought after design (as found in the Eminence Legend CA10) features a truncated cast frame chassis for tight fitting in your 2x, 4x and 8x10 cabinet. Loud and clear bass guitar tone with legendary growl.
- Made famous as an OEM model in many popular bass guitar cabinet brands, this highly sought after design features a truncated cast frame chassis for tight fitting in your 2x, 4x and 8x10 cabinet. Loud and clear bass guitar tone with legendary growl.
- SPECIFICATION Nominal Basket Diameter : 10", 254 mm || Nominal Impedance* : 8 Ω || Power Rating* : || Program Power : 400 W || Watts : 200 W || Resonance : 53 Hz || Usable Frequency Range : 50 Hz - 3 kHz || Sensitivity* : 96.3 dB || Magnet Weight : 38 oz. || Gap Height : 0.312", 7.9 mm || Voice Coil Diameter : 2", 51 mm ||
- THIELE & SMALL PARAMETERS : || Resonant Frequency (fs) : 53 Hz || DC Resistance (Re) : 4.83 Ω || Coil Inductance (Le) : 0.51m H || Mechanical Q (Qms) : 6.53 || Electromagnetic Q (Qes) : 0.49 || Total Q (Qts) : 0.45 || Compliance Equivalent Volume (Vas) : 51.05 liters / 1.8 cu.ft. || Peak Diaphragm Displacement Volume (Vd) : 105.7 cc || Mechanical Compliance of Suspension (Cms) : 0.3 mm/N || BL Product (BL) : 10.07 T-M || Diaphragm Mass Inc. Airload (MMs) : 31 grams || Efficiency Bandwidth Product (EBP) : 109 || Maximum Linear Excursion (Xmax) : 3.02 mm || Surface Area of Cone (Sd) : 350.1 cm2 || Maximum Mechanical Limit (Xlim) : 7 mm ||
- MOUNTING INFORMATION : || Recommended Enclosure Volume : || Sealed : N/a || Vented : Acceptable || Driver Volume Displaced : 0.043 cu.ft. / 1.22 liters || Overall Diameter : 10.5", 266.7 mm || Baffle Hole Diameter : 9.01", 228.9 mm || Front Sealing Gasket : Yes || Rear Sealing Gasket : Yes || Mounting Holes Diameter : 0", 0mm || Mounting Holes B.C.D. : 0", 0mm || Depth : 0", 0 mm || Net Weight : 8.8 lbs, 3.99 kg || Shipping Weight : 9.7 lbs, 4.4 kgs ||
- MATERIALS OF CONSTRUCTION : || Coil Construction : Copper voice coil || Coil Former : Kapton former || Magnet Composition : Ferrite magnet || Core Details : Vented and extended core || Basket Materials : Die-cast aluminum basket || Cone Composition : Paper cone || Cone Edge Composition : Cloth cone edge || Dust Cap Composition : Treated paper dust cap ||
| UPC | 876358002764 |
|---|---|
| ASIN | B00UHNKEX8 |
| Brand | Eminence |
| Color | Black |
| MP3 player | No |
| Model Name | Eminence |
| Unit Count | 1.0 Count |
| Manufacturer | Eminence |
| Model Number | LEGENDCA108 |
| Power Source | Corded Electric |
| Speaker Size | 10 Inches |
| Speaker Type | Woofer |
| Is Waterproof | False |
| Mounting Type | Flush Mount |
| Warranty Type | Limited |
| Control Method | Touch |
| Item Type Name | EMINENCE LEGENDCA108 Eminence Legend CA10-8 10" Bass Guitar Speaker, 200 Watts at 8 Ohms |
| Controller Type | Corded electric |
| Number of Items | 1 |
| Woofer Diameter | 10 Inches |
| Antenna Location | For Bass Guitar |
| Audio Driver Size | 10 Inches |
| Audio Driver Type | Dynamic Driver |
| Audio Output Mode | Stereo |
| Compatible Devices | Smartphone, Tablet, Laptop |
| Enclosure Material | Cloth, Paper, Aluminum, Die-cast Aluminum, Ferrite |
| Number Of Circuits | 1 |
| Subwoofer Diameter | 10 Inches |
| Additional Features | Component, Driver, Motorcycle Car, Radio, Speaker |
| Warranty Description | 90 days |
| Connectivity Protocol | Auxiliary |
| Customer Package Type | Standard Packaging |
| Number of Power Levels | 1 |
| Connectivity Technology | Auxiliary |
| Number of Audio Channels | 2.0 |
| Item Dimensions D x W x H | 10"D x 9"W x 2"H |
| Specific Uses For Product | Bass Guitar |
| Speaker Maximum Output Power | 200 Watts |
| Subwoofer Connectivity Technology | Wired |
| Global Trade Identification Number | 00876358002764 |
| EU Spare Part Availability Duration | 7 Years |
