Freud 16-524: 1-1/4" (dia.) Mortising Bit with 1/2" shank, 5/8" carbide height
Product details
| Management number | 216491050 | Release Date | 2026/04/19 | List Price | US$14.37 | Model Number | 216491050 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

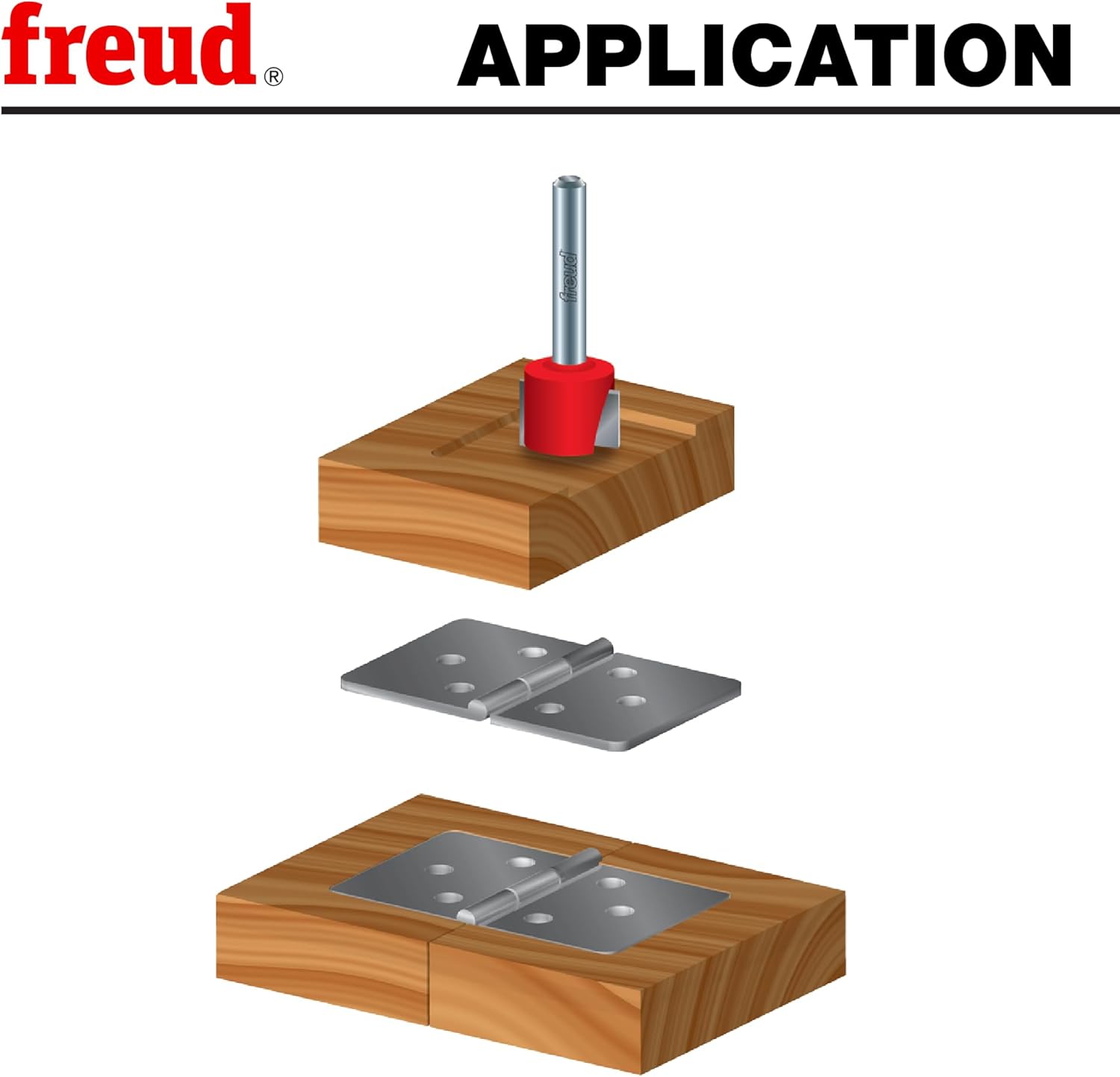

Product Description 1-1/4" (Dia.) Mortising Bit From the Manufacturer 1 1/4" diameter Top Bearing Mortising-Dado Bit 5/8" carbide height 1/2" shank.Freud's Mortising bits are designed with deep gullets for maximum material removal without chip loading. Ideal for hinges, mortises, and dadoes.

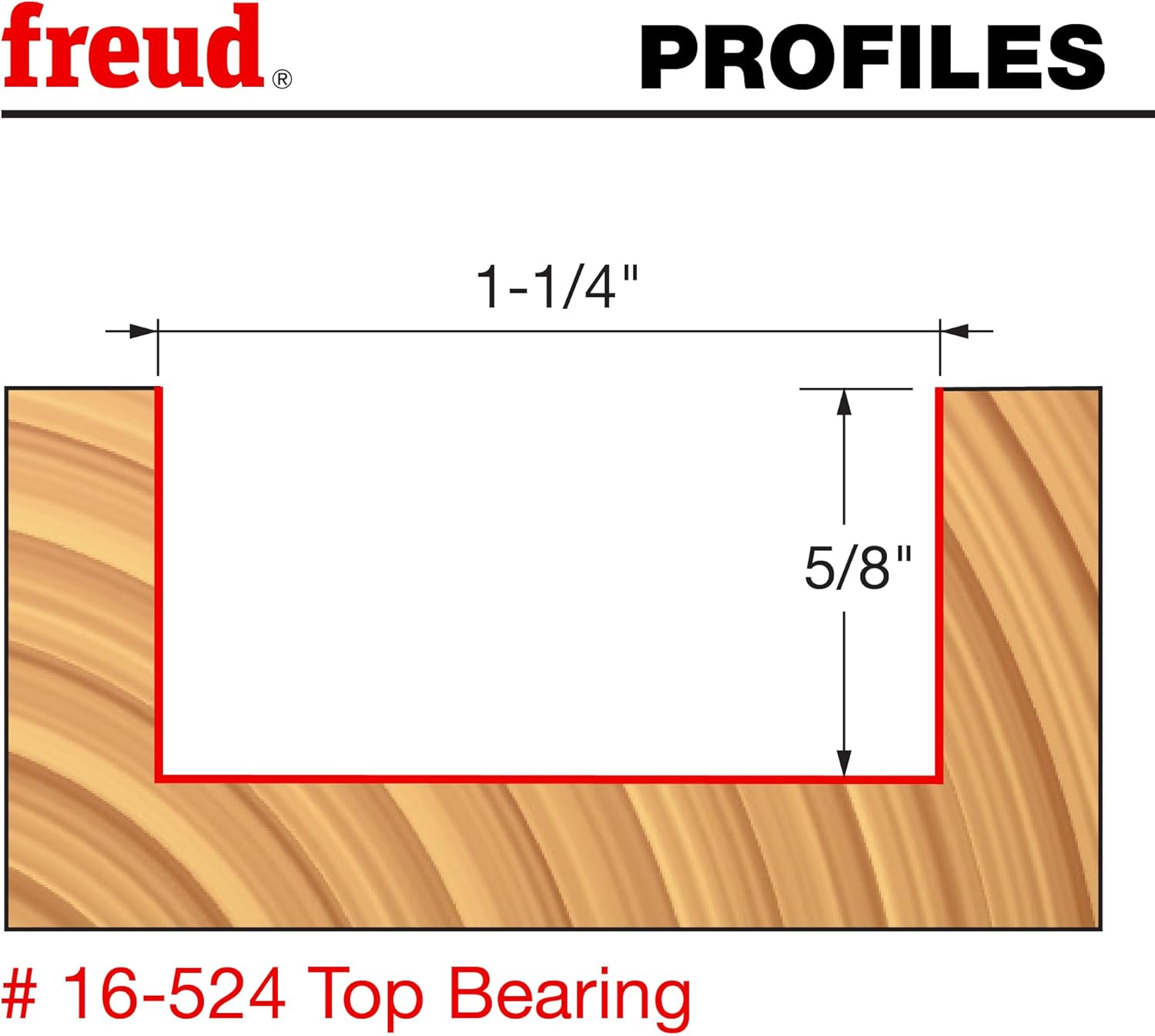

- Specs: Number of Cutters 2, Overall Dia. 1-1/4", Overall Length 2-3/8", Shank Dia. 1/2", Carbide Height 5/8"
- Down shear design on most bits for clean top surfaces
- Deep center gullets for fast chip removal
- Use on CNC, hand-held and table-mounted portable routers
- Available with top bearings to suit popular routing jigs
- Freud Perma-SHIELD Coating
| UPC | 008925020134 |
|---|---|
| Model | 16-524 |
| Cut Type | Straight Cut |
| Size Name | One Size |
| Brand Name | Freud |
| Unit Count | 1.0 Count |
| Item Weight | 0.15 Kilograms |
| Part Number | 16-524 |
| Manufacturer | Freud |
| Item Diameter | 1.25 Inches |
| Material Type | Blend |
| Item Type Name | 16-524 1-1/4-Inch by 5/8-Inch Top Bearing Dado Router Bit, 1/2-Inch Shank |
| Cutting Diameter | 1.25 Inches |
| Number of Flutes | 2 |
| Included Components | Mortising Router Bit |
| Global Trade Identification Number | 00008925020134 |
