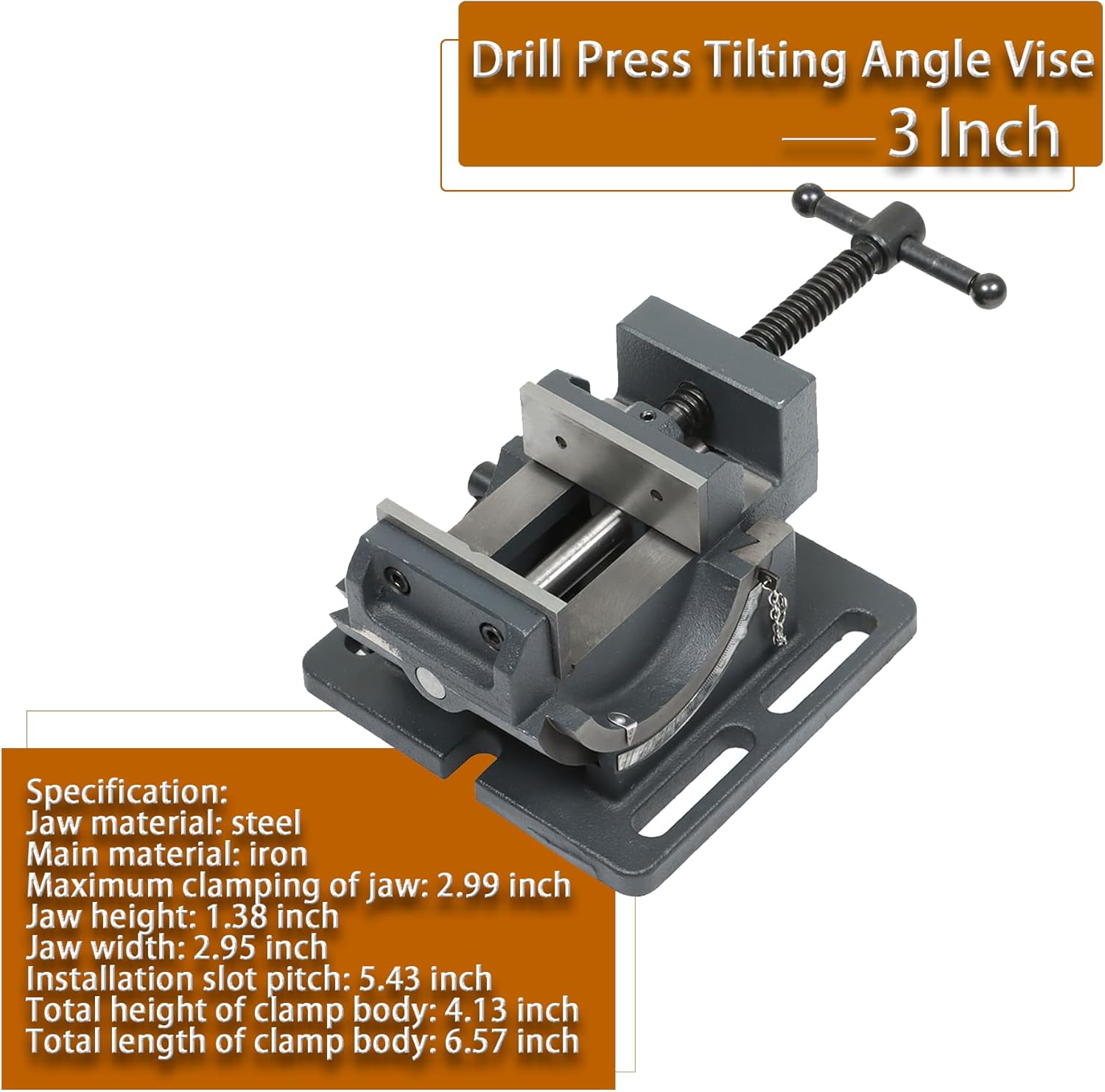

kimllier 3 Inch Cradle Style Drill Clamp Vice 0-90 Degree Swivel Angle Drill Press Vise Cast Iron Drill Press Tilting Angle Vise

3 Inch Cradle Style Drill Clamp Vice 0-90 Degree Swivel Angle Drill Press Vise Cast Iron Drill Press Tilting Angle ViseSpecification:Jaw material: steelMain material: ironVise size:Maximum clamping of jaw: 2.99 inchJaw height: 1.38 inchJaw width: 2.95 inchInstallation slot pitch: 5.43 inchTotal height: 4.13 inchTotal length: 6.57 inchInstructions for use:After receiving the product, it may be found that there is a layer of oil on top, which is a normal phenomenon. In order to maintain the product and extend its service life.For the screw, the contact surface used should be regularly cleaned and oiled to avoid rusting.When clamping, pay attention to the appropriate force and do not clamp forcefully.Features:The size scale of the cradle style angle vise is clear and visible, and the tilt angle can be adjusted from 0 to 90 degrees. It can be tilted at any angle from 0 to 90 degrees. Insert the pin to fix the angle.The 3 inch angle drill press vise is equipped with a guide rod, which is not easy to shake when adjusting the jaws, increasing the smoothness of movement and making clamping and loosening smoother, meeting your usage needs.The angle drill press vise jaws have been carefully designed. One side adopts a cross deep V-shaped groove design to increase friction, while the other side adopts a flat design to make the contact surface more closely fit with the workpiece and less prone to shaking.Package Includes:1pcs 3 inch angle drill press vise

• Size: Total height: 4.13 inch, total length: 6.57 inch, maximum clamping of jaw: 2.99 inch, jaw height: 1.38 inch, jaw width: 2.95 inch, installation slot pitch: 5.43 inch.
• 90 degree tilt: The size scale of the angle vise is clearly visible, and the tilt angle can be adjusted from 0 degrees to 90 degrees. Insert the pin to fix the angle, it can tilt at any angle from 0 to 90 degrees to meet your usage needs.
• Accuracy grinding guide rail: The 3-inch angle drilling press vise has a accuracy grinding guide rail surface, which slides smoothly and is not easy to shake when adjusting the jaws, increasing the smoothness of movement, making clamping and loosening smoother, and improving machining accuracy.
• Deep V-shaped pliers: The angle drill press vise have been carefully designed. One side adopts a cross deep V-shaped groove design to increase friction, while the other side adopts a flat design to make the contact surface more closely fit with the workpiece and less prone to shaking.
• Include: 1pcs 3 inch drill press tilting angle vise. Suitable for clamping in drilling, grinding, cutting and other machining processes.
