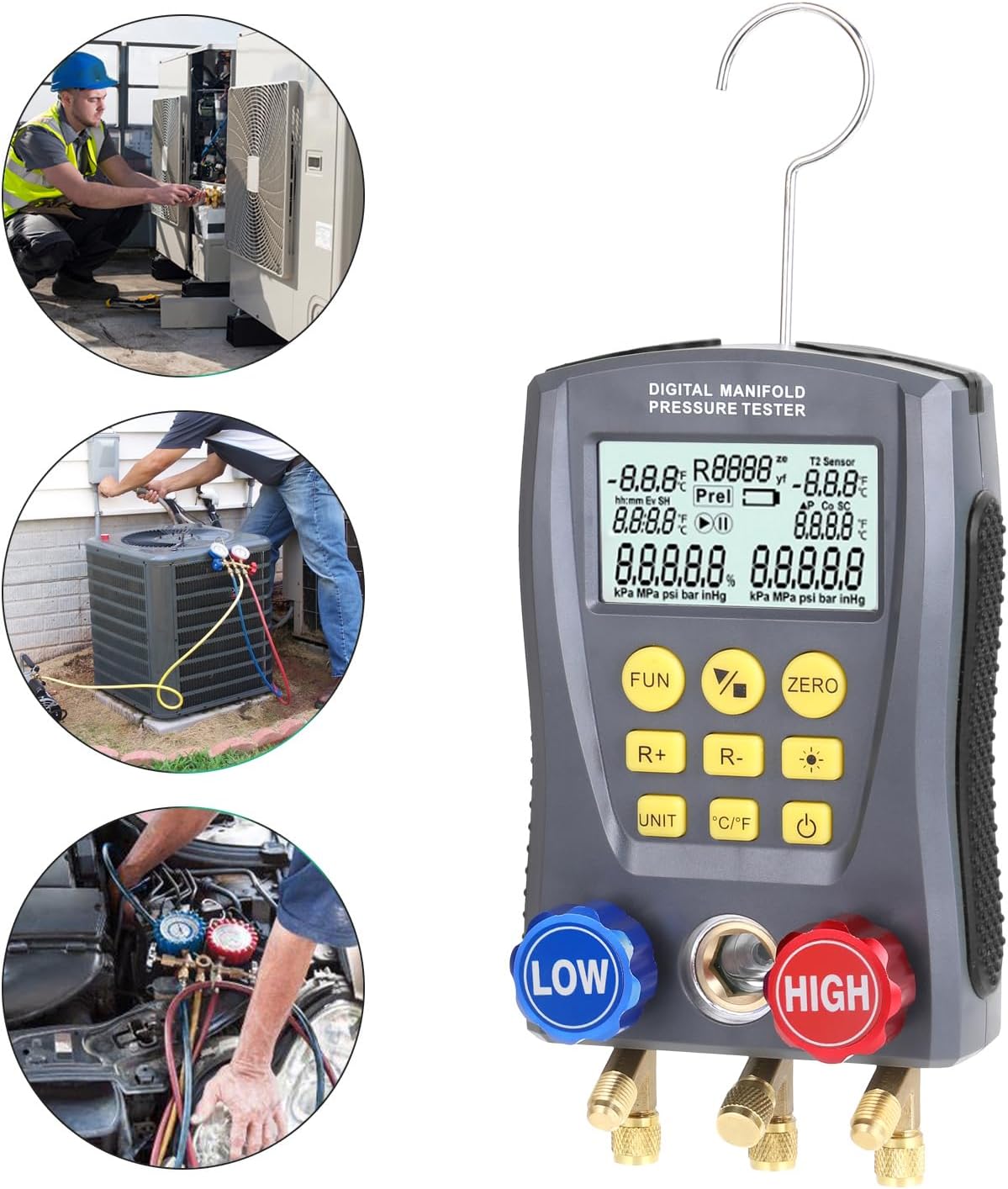

Pressure Gauge Refrigeration Digital Vacuum Pressure Manifold Tester Meter HVAC Temperature Tester Digital Manifold Gauge Meter HVAC Vacuum Pressure

Specifications: Pressure test: gauge pressure Pressure test unit: Kpa; Mpa; bar; inHg; PSI. Pressure test : 0 Kpa – 6000 Kpa Pressure test resolution: 1 Kpa Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;) Vacuum test: relative vacuum Vacuum test unit: Kpa; Mpa; bar; inHg; PSI. Vacuum test : -101 Kpa – 0 Kpa Vacuum test resolution: 1 Kpa Temperature test unit: °C (Celsius), °F (Fahrenheit) Temperature test : -40°C–150°C (-40°F–302°F) Temperature test resolution: 0.1°C (-40°C–99.9°C), 1°C (100°C–150°C) 0.1°F (-40°F–99.9°F), 1°F (100°F–302°F) Temperature test accuracy: +/- 0.5 °C + 2dgt +/- 0.9 °F + 2dgt Built-in 89 kinds of refrigerant NIST: According to AmericanNIST standard Power plies: 4 X 1.5V (SIZE.AA / LR6) Battery not include Size: 170 * 110 * 50mm / 6.7 * 4.3 * 2.0in Package size: 200 * 150 * 80mm / 7.9 * 5.9 * 3.0in Package weight: 950g / 2.09lb Packing List: 1 * Refrigeron Digital Manifold Gauge 1 * User manual (in English)

• The instrument can measure double pressure (gauge pressure) at the same time, as well as dual temperature measurement (need test clip,not include), with automatic multi-unit pressure conversion, automatic conversion of temperature Celsius / Fahrenheit, to facilitate different needs.
• Built-in 89 kinds of refrigerant pressure-evaporation temperature database, also calculate the subcooling erheat, to facilitate direct reading of operating process data.
• Also it tests percene of vacuum measurement; pressure leak measurement, leak time speed record.
• It is drved to have this multi-functional, accurate and simply operated digital manifold let you do the right.
